94v0 1oz Enig Hdi Pcb Board 4layer Oem Fabricating

Name: 94v0 1oz Enig Hdi Pcb Board 4layer Oem Fabricating
Brand: HNL-PCBA
Price: 1 USD

Wholesale 94v0 1oz Enig Hdi Pcb Board 4layer Oem Fabricating from china suppliers

Brand Name : HNL-PCBA

Model Number : PCB Assembly 08

Certification : ISO9001,IS16949, ISO14001,ROHS , UL, IPC-A , UL, QC080000

Place of Origin : CHINA

MOQ : 3PC

Price : Negotiable

Payment Terms : T/T, Western Union, L/C, MoneyGram

Supply Ability : 10,000,000 Point /Day

Delivery Time : 1-7days

Packaging Details : ESD packaging with carton box

Product name : HDI PCB Board

Material : FR4, 94v0 Circuit Board

Copper thickness : 1OZ

Min. line spacing/width : 0.1＊0.1mm

Min. hole size : Laser 0.05mm ; Mechnical 0.15mm

Service : One-stop Service,PCB&PCBA,ODM and OEM

PCB Assembly method : Mixed, SMT, and THT

Board thickness : 1.6mm

DK : 3.6

surface treatment : ENIG

Contact Now

1OZ ENIG Multilayer 4Layer OEM Fabricating HDI PCB Board

HDI PCB Board Introduction

The High-Density Interconnect (HDI) Printed Circuit Board is HDI PCB Board. There is little space between the PCB components, making the board space smaller, at the same time the board functionally isn’t affected. That is, a PCB with about 120 – 160 pins per square inch is an HDI PCB. All of the other electronic components are mounted on the printed circuit boards(PCBs),which are the foundation.

PCB CAPABILITIES

FACTORY CAPABILITIES
No.	Items	2020
1	HDI Capabilities	HDI ELIC(5+2+5)
2	Max layer count	46L
3	Board Thickness	Core thickness 0.05mm-1.5mm ,Fineshed board thickness 0.3-3.5mm
4	Min.Hole Size	Laser 0.05mm
		Mechnical 0.15mm
5	Min Line Width/Space	0.030mm/0.030mm
6	Copper Thickness	1/3oz-6oz
7	Size Max Panel size	700x610mm
8	Registration Accuracy	+/-0.05mm
9	Routing Accuracy	+/-0.05mm
10	Min.BGA PAD	0.125mm
11	Max Aspect Ratio	10:01
12	Bow and Twist	0.50%
13	Impedance Control Tolerance	+/-5%
14	Daily output	4,000m2 (Max capacity of equipment)
15	Surface Finishing	HASL Lead Free /ENEPING /ENIG /HASL /FINGER GOLD/IMMERSION TIN/SELECTIVE THICK GOLD
16	Raw Material	FR-4/Normal Tg/High Tg/Low Dk/HF FR4/PTEE/PI

PCBA Capability
Material Type	Item	Min	Max
PCB	Dimension (length,width,height.mm)	50400.38	6004004.2
Components	Chip&IC	1005	55mm
	BGA Pitch	0.3mm	-
	QFP Pitch	0.3mm	-

The types of HDI PCB

1.through vias from surface to surface,
2.with buried vias and through vias,
3.two or more HDI layer with through vias,
4.passive substrate with no electrical connection,
5.coreless construction using layer pairs
6.alternate constructions of coreless constructions using layer pairs.

94v0 1oz Enig Hdi Pcb Board 4layer Oem Fabricating

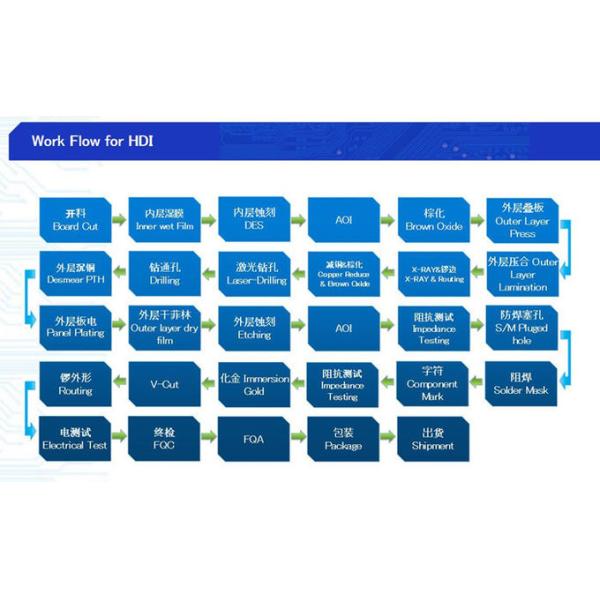

Work flow for HDI

Board Cut - Inner Wet film -DES - AOI - Brown Oxido - Outer Layer Press - Out Layer Lamination - X-RAY & Rounting - Copper reduce & brown oxide - Laser Drilling - Drilling - Desmear PTH - Panel plating - Outer Layer dry film - Etching - AOI- Impedance Testing - S/M Pluged hole - Solder Mask - Component Mark - Impedance testing - Immersion Gold -V-cut - Routing - Electrical Test - FQC - FQA -Package -Shipment

94v0 1oz Enig Hdi Pcb Board 4layer Oem Fabricating

Similar products

Delivery Time

Product Type	Qty	Normal lead time	Quick-turn lead time
SMT+DIP	1-50	1WD-2WD	8H
SMT+DIP	51-200	2WD-3WD	1.5WD
SMT+DIP	201-2000	3WD-4WD	2WD
SMT+DIP	≥2001	4WD-5WD	3WD
PCBA(2-4Layer)	1-50	2.5WD-3.5WD	1WD
PCBA(2-4Layer)	51-2000	5WD-6WD	2.5WD
PCBA(2-4Layer)	≥2001	≥7WD	5WD
PCBA(6-10Layer)	1-50	3WD-4WD	2.5WD
PCBA(6-10Layer)	51-2000	7WD-8WD	6WD
PCBA(10-HDILayer)	1-50	7WD-9WD	5WD
PCBA(10-HDILayer)	51-2000	9WD-11WD	7WD

HDI PCB Board Application Field

Our products are widely used in communication equipment, industrial control, consumer electronics, medical equipment, aerospace, light-emitting diode lighting, automotive electronics etc.

94v0 1oz Enig Hdi Pcb Board 4layer Oem Fabricating

Workshop

94v0 1oz Enig Hdi Pcb Board 4layer Oem Fabricating

Common packaging

1.PCB: Vacuum packaging with carton box
2.PCBA: ESD packaging with carton box

94v0 1oz Enig Hdi Pcb Board 4layer Oem Fabricating

Company information

We have profuse experience in manufacturing PCB,owned experienced technical R & D technology team, young and professional sales and customer service team, experienced and professional procurement team and assembly testing team, which make sure the products quality of the pass rate, on-time delivery rate of customer orders.

Our services include: circuit board design and layout, 2-46 layers PCB manufacturing, professional FPC production, electronic components purchasing, SMT professional processing, Soldering and Assembly, especially sample and small bulk orders. we have the advantages of a quick quote, fast production, fast delivery.
